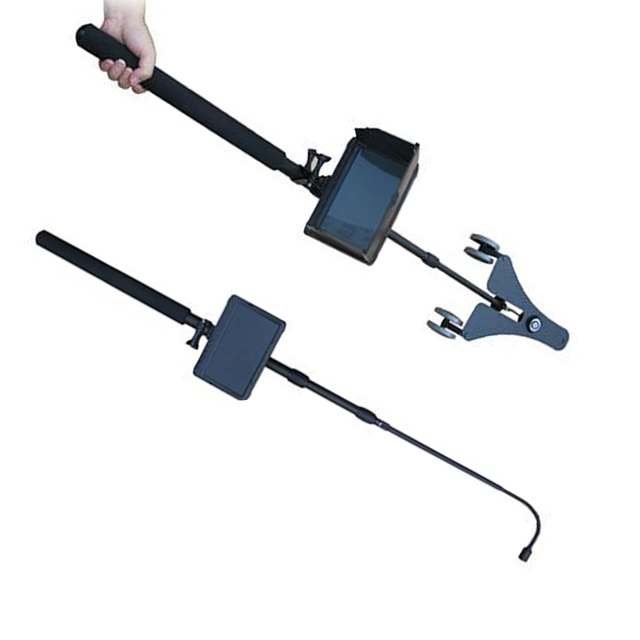

HD Digital Under Vehicle Inspection Camera With 7 Inch DVR System For Security Check
HD digital camera with 7inch DVR system under vehicle inspection camera for security check
1,Specification
Mini camera for Wheels tray
Optical Element 1/2.5 CMOS Sensor SONY
Optical Total Pixels 2.5M :2000(H)×1121(V)
CMOS Sensor Size 5.6mm(H)×3.14mm(V)
Sensitivity 0.08Lux/F1.2
Lens & View angle 3.6mm F1.2 (H )90 °
HD Video Output Interface FPD-LinkⅢ
Waterproof rate IP68
camera Pole 2m Telescopic Survey Pole
Dimension & Weight 18 x 28mm, 10g
Cable(4 Cores High-Speed Line) Diameter:3.5mm Length:2.7meters
Flexible camera
Optical Element 1/3 CMOS Sensor
Optical Total Pixels 3.5 Mega :2304(H)×1536(V)
CMOS Sensor Size 5.07mm(H)×3.38mm(V)
Sensitivity 0.2Lux/F1.2
Lens & View angle 0.5mm F1.2 90 °
HD Video Output Interface FPD-LinkⅢ
Waterproof rate IP68
Dimension & Weight 18 x 28mm, 10g
Cable(5 Cores High-Speed Line) Diameter:3.5mm Length:3 meters
camera Pole 2m Telescopic Survey Pole
7’ SCREEN DVR
HD Video Output HDMI:1920* 1080;1280*720
Video Storage Pixels(16:9) HDMI:1920* 1080;1280*720
Video Compression Format H.264
Video Storage AVI
HD Digital Video Input Interface FPD-LinkⅢ
Audio Frequency Range 20HZ-20KHz AAC
Audio Compression Format AAC
Photo Format JPG 3.15 Mega :3200(H)×1800(V)
Storage External SD card TF card 1GB-64GB(Optional)
32GB recording time 10-32 hours
Operating System Windows & Mac OS
Port USB 2.0
Language Multiple
Voltage DC :7-24V
USB DC:5V
Current(Monitor mode) 400MA
2,Detailed parts
